Denys Hargrove Key Takeaways
- Dacor oven heating element replacement cost starts from $180 for a bake element and from $185 for a broil element, parts and labor together.
- The diagnostic starts from $95 and is credited toward the repair once you approve the work.
- A blister, a break, or scorching near the terminals tells you which element has failed; a hairline break inside the sheath needs a continuity test.
- Element repairs are usually worth doing on an oven under about a dozen years old when nothing else is failing.
- Final prices are confirmed after an on-site diagnosis, with a written estimate before any work starts.
The Bottom Line
An element is one of the more affordable Dacor oven repairs, starting from $180. Get the diagnostic first so you pay for the part that actually failed, and expect the written estimate before work begins.
Most people asking about Dacor oven heating element replacement cost have the same story: the oven is on, the light is on, the fan may even be running, but the cavity barely warms. That makes the element the most likely suspect, and it is also one of the more affordable oven repairs, because the part is simple and the labor is contained. What decides the final number is which element failed, how it failed, and whether anything else was damaged when it did.
| Element | What you notice when it fails | Starting point, parts and labor |
|---|---|---|
| Bake (lower) element | Oven heats slowly or not at all; broil still works | from $180 |
| Broil (upper) element | Broil does nothing; bake still works, tops stay pale | from $185 |
| Temperature sensor (often blamed first) | Code on the display, oven runs hot or cold | from $125 |
| Control board (if the element tests fine) | No heat, no clear fault code, other buttons odd | from $415 |
How Much Does Dacor Oven Heating Element Replacement Cost?
A bake element replacement on a Dacor wall oven starts from $180, parts and labor together, and a broil element starts from $185. The element itself is the smaller part of that: the parts cost on our price list starts from $85 for a bake element and from $90 for a broil element, and labor from $95. The diagnostic that confirms the element is the real fault starts from $95, and it is credited toward the repair when you approve the work.
Those are starting points, not quotes. A double wall oven has two cavities and two sets of elements, some Heritage and Modernist models use a different element than older platforms, and an element that has burned through the oven wall wiring costs more to repair than one that simply stopped glowing. The final price is confirmed after an on-site diagnosis, with a written estimate before any work begins.
Which Element Has Actually Failed?
You can often tell which element failed just by looking, and you should do it with the oven cold and the breaker off. A failed element tends to show one of a few visible signs, and each one changes how the repair goes.
- A visible blister or bubble on the metal sheath means the resistance wire inside has overheated and will fail soon, if it hasn't already.
- A break, gap, or burned-through spot in the coil means the circuit is open and the element will never glow in that area.

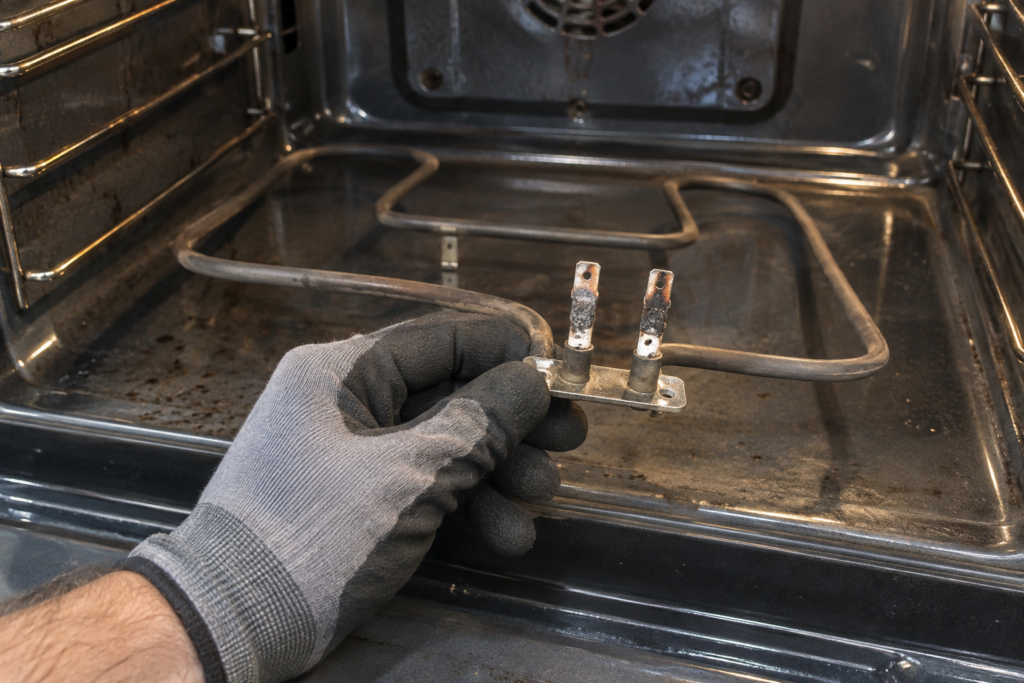

- Dark scorching on the oven floor or wall near the terminals means a poor connection is arcing, which is a bigger repair than the element alone.
- An element that looks perfect proves nothing; a hairline break inside the sheath is invisible and only a continuity test finds it.
The bake element on many wall ovens sits under a cover or behind a panel, so you may not see it at all. A technician reads the element's resistance with a meter, which takes minutes and removes the guesswork.
Why Does an Upper Element Sometimes Cost More Than You Expect?
An upper element can cost more because getting to it can take more work, and because the broil element carries heavier use and heavier heat. Many owners ask what it should cost to fix the upper element after a broil failure, and the honest answer is that the part price is close to the lower element while the labor can climb when panels, insulation, or a convection fan sit in the way. The table above shows the gap is small on our list, but it can widen on a model where the element is held in place by the back wall of the cavity.
Two things reduce the bill. First, tell the technician exactly which cooking mode stopped working: if bake works and broil does not, the upper element is the target and the diagnostic is shorter. Second, ask for the old element back or have it shown to you, so a blister or break you cannot see yourself is confirmed in your own hands.
What Else Appears on a Fair Estimate
A fair estimate for an element repair lists the diagnostic, the part, and the labor as separate lines, and it tells you what was tested. Ask to see each of the following, because they explain most of the difference between two quotes for the same oven.
- The diagnostic result: a resistance reading on the element, not just a guess from the symptoms.
- The part number, so you know whether the element is the one made for your model.
- Terminal and wiring condition: burnt connectors are replaced with the element, and they should be named on the estimate.
- Anything found alongside, such as a sensor with a drifting reading, listed as an option rather than added silently.
- Warranty on the repair, in writing, covering both the part and the labor.
If a visit finds an element that tests perfectly, the repair stops there and the search moves on to the sensor, the board, or the supply. That is a good outcome, not a wasted visit, because it saves you from paying for a part that was never the fault.
Is It Worth Replacing an Element on an Older Dacor Oven?
For most ovens, yes, because an element repair costs a fraction of a new built-in oven. If the oven is under about a dozen years old and the element is the only fault, replacing it is almost always the sensible choice. The calculation changes when the element fails on top of a second problem, such as a control board fault, a door that no longer seals, or a sensor that is also drifting. Then you are weighing several aging parts against one new appliance, and our guide on whether a Dacor oven is worth repairing walks through that decision step by step.
- Element alone, oven under a dozen years: repair is the straightforward answer.
- Element plus sensor code: fix both in one visit, since a sensor fault can mimic an element fault.
- Element plus board fault: compare the combined bill with replacement before approving.
- Warranty parts still in force: check coverage first through warranty parts before paying anything.
Getting an Exact Number for Your Oven
The only reliable price is the one written after a technician has tested the element on your oven. Our Dacor oven repair service starts with that test, and our overview of Dacor oven repair cost shows where an element sits against every other common repair. If the oven does not heat at all, read why a Dacor oven stops heating first, because an igniter or a sensor can look the same from the kitchen. When you are ready for a written estimate, schedule a visit.
